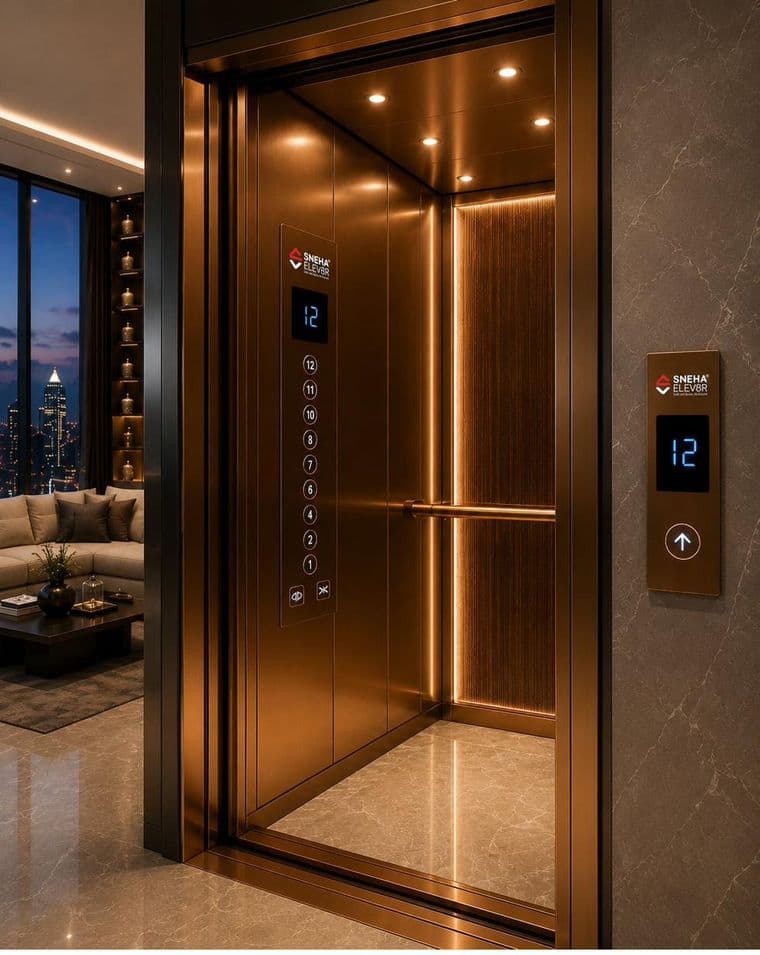

VL Series
Smart, space-efficient elevators for residential apartments, office buildings and small to high-rise commercial spaces, with no separate machine room, powered by an energy-efficient gearless drive.
Smart, space-efficient elevators for modern buildings
- No separate machine room: the gearless machine lives inside the shaft, freeing your terrace and cutting civil work.
- Made for daily traffic: smooth, precisely levelled stops for 4 to 30 persons in apartments, offices and hotels.
- Small to high-rise range: speeds from 0.5 to 2.5 m/s across 2 to 25 stops.
- Efficient by design: energy-saving gearless drive, with LED-lit cabin and fire-rated door options.
Smooth & quiet ride
Smooth acceleration and deceleration with precise floor levelling, ensuring a comfortable ride for every passenger.
Energy-efficient gearless drive
The gearless machine consumes less power, requires lower starting current, and operates without oil, making it cost-effective and eco-friendly.
Reduced civil work
Customised fitting to your civil drawings. The MRL design means no separate machine room, simplifying building integration.
Refined cabin experience
Aesthetically designed cabins with LED lighting, premium finishes, and customisable interior options.
Engineered for small to high-rise buildings
VL Series elevators support a wide range of capacities and speeds, configurable to your building’s usage profile and architectural constraints.
| Drive Type | Gearless Traction (Machine-Room-Less) |
|---|---|
| Capacity | 4 to 30 Persons (272 to 2040 kg) |
| Speed Range | 0.5 m/s to 2.5 m/s |
| Pit Depth | 1000 mm minimum (varies by speed) |
| Overhead | 3000 mm minimum (varies by speed) |
| Maximum Stops | 2 to 25 stops |
| Power Supply | 415 V / 3-phase / 50 Hz |
| Door Type | Automatic centre-opening / side-opening |
| Suspension | Steel wire rope, multi-strand |
| Cabin Material | Stainless steel, MS painted, or custom finish |
| Controller | Microprocessor-based, VVVF drive |
| Compliance | ISO 9001:2015, ASME A17.1 equivalent |
Fits seamlessly into these spaces
Apartment towers, gated communities
Corporate offices, co-working spaces
Multi-floor showrooms, malls
Premium private residences
Tailored to match your architecture
With the VL Series machine-room-less elevator, you don’t just choose an elevator, you shape it. Select from a range of cabin materials, textures, lighting styles and panel finishes to match your space. Our design team works closely with you to ensure the MRL installation integrates with the building while delivering dependable performance.
Cabin Finishes
Stainless steel (hairline, mirror, etched) or mild-steel powder-coated panels. Custom laminates and stone options available.
Lighting
LED ceiling fixtures, mood lighting, panel-integrated lighting and signature ceiling designs.
Doors & Controls
Auto centre-opening or side-opening doors, fire-rated options, touchless call buttons.
Safety at every level
VL Series elevators include layered safety systems engineered for daily operation and emergency conditions.
Fire-Rated Doors
1-hour fire-rated landing doors that meet ISO 9001:2015 safety requirements and protect the hoistway during emergency conditions.
Sensor-Based Doors
Automatic doors with light curtains and obstruction detection. Prevents closure if a passenger or object is in the doorway.
Emergency Alarm System
In-cabin alarm button and two-way communication for passengers to alert building staff in case of an emergency.
Automatic Rescue Device
On power failure, the battery-backed ARD automatically moves the cabin to the nearest floor and opens the doors safely.
Overload Protection
Prevents elevator operation when load limits are exceeded. Audible warning alerts passengers to reduce load.
